How Ball Valve Works
Datetime: 2016/5/4 10:37:30  Hits: 9759

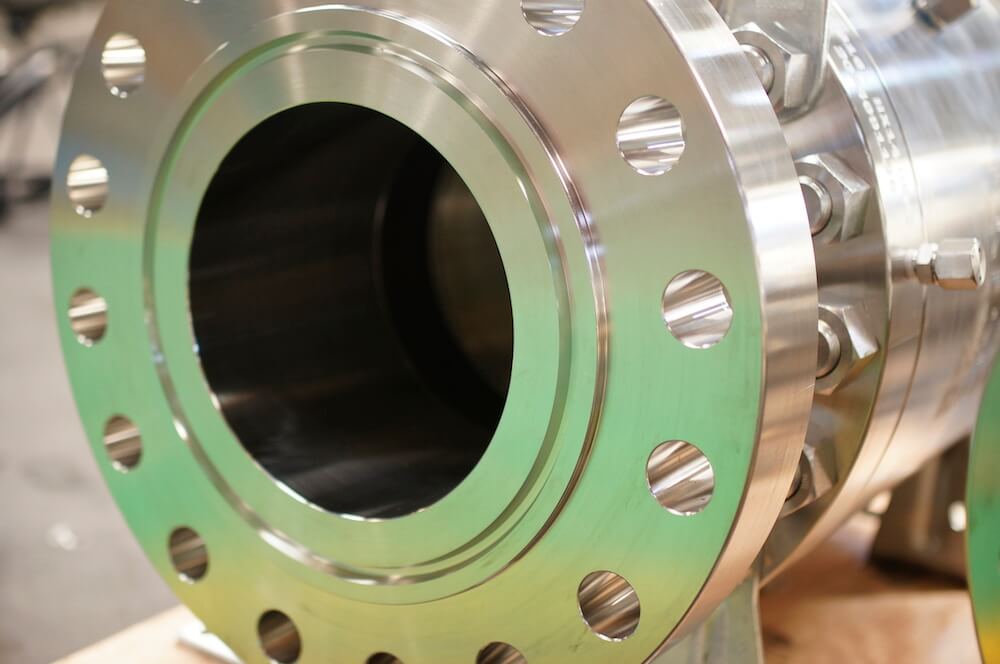

Ball Valve


What is a Ball Valve?


A ball valve is a rotational motion (quarter turn), quick rotating valve that uses a ball-shaped disk to stop or start or regulate fluid flow. The function of this type of valves, ball is same as of disk in globe valve. When the valve handle is turned to open the valve, the spherical ball rotates to a position where the hole through the ball is in-line with the valve body inlet and outlet of flow. When the valve is shut, the ball is rotated so that the hole is perpendicular to the flow openings of the valve body and the flow is stopped.



WFE Forged Steel Floating Ball Valves 3D Demonstration


Ball valve actuators are of the quick-acting type, which require a 90° turn of the valve handle to operate the valve. Some ball valve actuators such as planetary gear-operated, allow the use of a relatively small operating force to operate a fairly large valve.


Some ball type valves have been developed with a spherical surface coated plug that is off to one side in the open position and rotates into the flow passage until disk blocks the flow path completely.

Advantages of Ball Valves


- A ball valve is the least expensive of any valve arrangement
- Ball valve offers low maintenance costs.
- Ball valves are compact, require no lubrication, and give tight sealing with low torque.

Disadvantages of Ball Valves


- Ball type valves (especially old designs) have relatively poor throttling characteristics.
- In a throttling position, the partially exposed seat of ball valve rapidly erodes because of the impingement of high velocity flow.

Valve Materials in Ball valves


Balls are usually metallic with trim (seats) produced from elastomeric (like rubber) materials. Plastic construction in ball valves is also available.
The resilient seats for ball valves are made from Teflon (TFE), filled TFE, Nylon, Buna-N, Neoprene, other combinations of these materials. Because of these elastomeric materials ball valves cannot be traditionally used at elevated temperature and engineer must take care while selecting ball valve for particular application.

Ball Valve Port Patterns, Bonnet & Stem Design


Ball valves are available in reduced, and full port pattern. The full port
pattern has a ball with a bore equal to the inside diameter of the pipe.

The stem and ball connection is explained here. The stem in a ball valve is not fastened to the ball. It normally has a rectangular portion at the ball end which fits into a slot cut into the ball. The enlargement permits rotation of the ball as the stem is turned. A bonnet cap fastens to the body, which holds the stem assembly and ball in place. Adjustment of the bonnet cap permits compression of the packing, which supplies the stem seal. Packing for ball valve stems is usually in the configuration of die-formed packing rings normally of TFE, TFE-filled, or TFE-impregnated material. Some ball valve stems are sealed by means of O-rings rather than packing.

Ball Valve Positions


Some ball valves are equipped with stops that permit only 90° rotation. Others do not have stops and may be rotated 360°. Whether there is stop available or not, a 90° rotation is all that is required for closing or opening a ball valve.

The handle indicates valve ball position. When the handle lies along the axis of the valve, the valve is open. When the handle lies 90° across the axis of the valve, the valve is closed. Some ball valve stems have a groove cut in the top face of the stem that shows the flow path through the ball. Observation of the groove position indicates the position of the port through the ball. This feature is particularly advantageous on multiport ball valves.


http://hvac-system-basics.blogspot.com/2012/10/ball-valve-how-it-works.html
