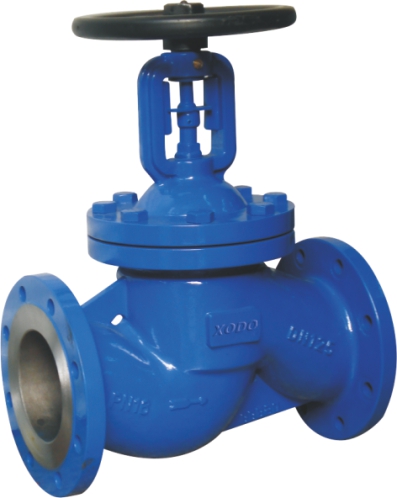

DIN WCB Bellows Sealed Globe Valve
Design Features:
Nominal Size Range: DN15 ~ DN350
Pressure Rating: PN16 ~ PN64
Connection: Flange (RF, FF, RTJ), Butt Welded (BW), Socket Welded (SW)
Design Specifications:
Design: DIN3356
Face-to-face dimensions for butt weld and flanged valves: DIN3202
Flange design: DIN2543-2545
Butt welding design: ASME B16.25
All valves are designed to comply with the requirements of ASME B16.34, and the ASME as well as customers' requirements as applicable.
Actuators:
Gear, Electric, Cylinder, Pneumatic, Hydraulic, Lever, Chain wheels
Body Material:
1.7363,1.4308,1.4408,1.4306,1.4301
Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
Quality Control (QC):
The QC is responsible for all aspects of quality, from receiving of material to control of machining, welding, nondestructive examination, assembly, pressure testing, cleaning, painting, and packaging.
Pressure Testing:
Each valve is pressure tested in accordance with API 6D, API 598, or special customers' requirements as applicable.
